    V4 · Spray Detection

    Spray Detection

    Directional spray and mist from fittings, seals, valves and lines. V4 looks for the visible release in your camera view and passes alarms into the systems your operators already watch.

    Download LLD for Your PlatformTry LLD Live Demo Right Now
    Pump Station Spray Leak
    Pump Station Spray Leak
    Runs onIntel

    Spray Performance Benchmark

    Spray and Visible Vapor — Combined Benchmark

    VisionAery V4 Liquid Leak Detection was trained on over 200,000 images.

    Accuracy was evaluated with 9,147 previously unseen frames, without per site training.

    Read the Benchmark Methodology
    98.1%
    Detection Rate
    3.7%
    False Positive Rate
    0.923
    F-score

    Spray and visible vapor were evaluated together; these are not separate measurements for either type. Detection and false positive rates are frame-level results, not alarm rates or performance guarantees. F-score is the pixel-level harmonic mean of precision and recall. Scenarios outside those tested are not covered by these figures.

    Detection Across Industries

    Spray Customer Use Cases

    Monitor for spray day and night, using artificial lighting or the camera’s near-infrared (NIR) illumination after dark.

    Industrial

    Pump Station Spray Leak — spray detection overlay
    Pump Station Spray LeakWatch pumps and exposed pipework for visible spray releases that require an operator’s attention.
    Well Pad Spray Leak — spray detection overlay
    Well Pad Spray LeakWatch utility and process equipment for camera-visible plumes so operators can investigate the release. This does not identify gas composition.

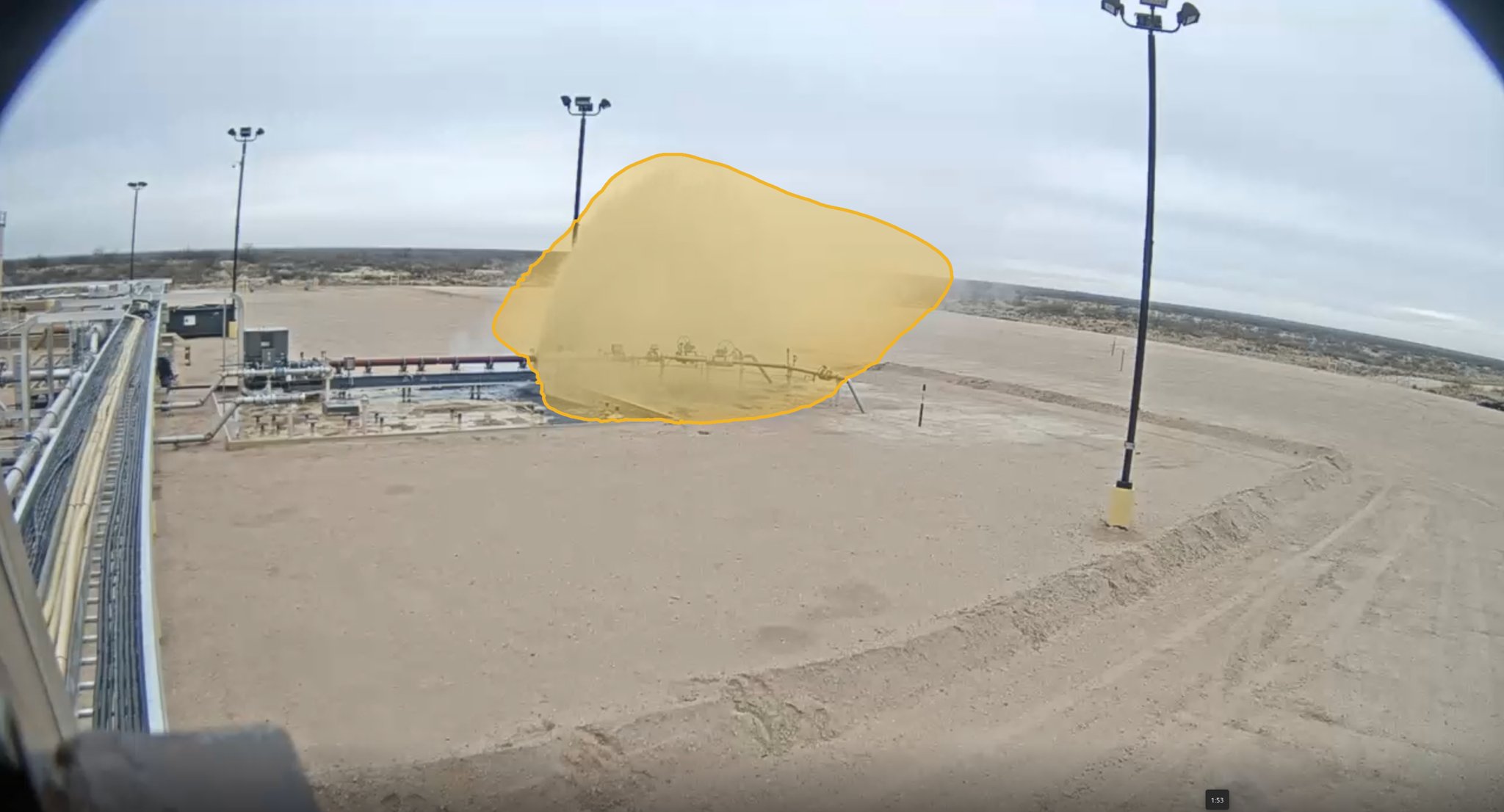

    Well Pad Spray Release — spray detection overlay
    Well Pad Spray ReleaseWatch utility and process equipment for camera-visible plumes so operators can investigate the release. This does not identify gas composition.
    Mining Pipe Spray Leak — spray detection overlay
    Mining Pipe Spray LeakMonitor mining pipework for visible spray and pooling liquid so operators can investigate the affected area.

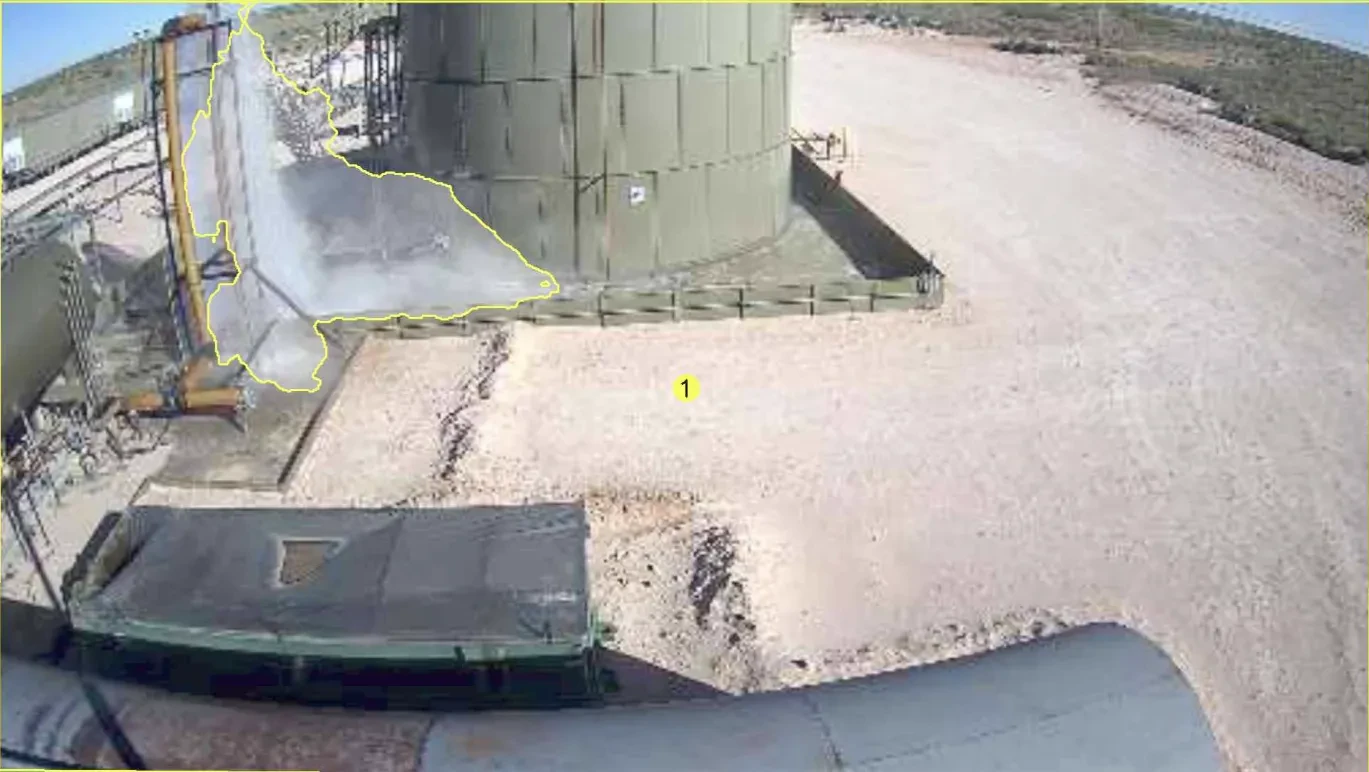

    Storage Tank Spray Leak — spray detection overlay
    Storage Tank Spray LeakWatch tank and pump areas for visible leaks, helping operators locate the area that needs inspection.

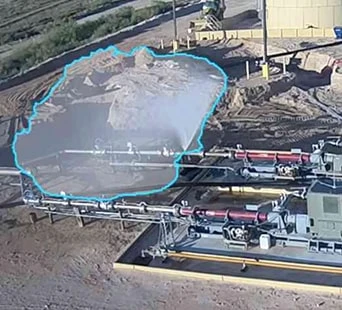

    Well Pad Spray Release — spray detection overlay
    Well Pad Spray ReleaseMonitor well-pad equipment for visible spray releases so operators can assess the source.

    Spray Detection Questions

    Where can spray detection be useful?

    The supplied examples show water utility pump stations, mining pipework and oil and gas well pads. Coverage depends on whether the camera can see the release with sufficient image detail.

    Is 98.1% a spray-only detection rate?

    No. Spray and visible vapor were measured as one combined benchmark class: 98.1% frame-level detection, 3.7% frame-level false positive rate and 0.923 pixel-level F1/Dice on 9,147 previously unseen frames. These model results are before the alarm engine, not a spray-only result or an alarm-rate guarantee.

    Can it detect an invisible release?

    No. Spray detection requires a release visible in the camera image. It does not identify a chemical or measure concentration.

    Can rain be gated?

    Yes. A camera I/O rain sensor, a polled I/O module or a weather service can pause detection during rain with a post-rain forgiveness window. Failed weather lookups never block detection. Rain gating helps reduce rain-related events, not all false alarms.
